iOS SDK Integration

This section shows you how to get the iOS Approov SDK and integrate it into your project in Xcode.

info

This section is written to obtain an iOS SDK. Since version 3.2.0 watchOS is also supported, but this requires a different SDK. You can use the commands listed in this section but append -watchOS to force the download of that version.

Getting the iOS SDK as an XCFramework​

The iOS Approov SDK can be downloaded using the approov command line tool. By default the SDK is provided as a dynamic XCFramework to allow usage with both physical devices and simulators. Use the following command to download the latest SDK package:

approov sdk -getLibrary Approov.xcframework

This writes the SDK into the directory Approov.xcframework (or any path that is specified). Ensure that this is empty before you perform this operation. Note that the raw iOS package is quite large so it may take some seconds to download depending upon your connection speed. Download progress is shown.

You will be informed if a new SDK version is available when you register an app that contains an older version. If this happens you should consider upgrading using this command, which will always provide the latest version.

In some cases you may have been directed to use a specific version of the SDK with a particular numeric identifier. You can select it as follows, 5643 in this example:

approov sdk -getLibrary Approov.xcframework -libraryID 5643

Importing the SDK into Xcode​

warning

The Approov SDK minimum requirement is iOS 12. You cannot use Approov in apps that support versions older than this.

The Approov framework can be added to an existing app Xcode project using the following steps:

  1. In the Xcode project editor, select the target to which you want to add the Approov SDK framework.

  2. Select the General tab.

  3. Select the + (plus) icon under the Embedded Binaries section.

  4. Select Add Other... in the file dialog and browse to the Approov.xcframework obtained using the approov command line tool.

  5. Select Open in the file dialog.

  6. Ensure the Copy items if needed destination option is checked, then select Finish.

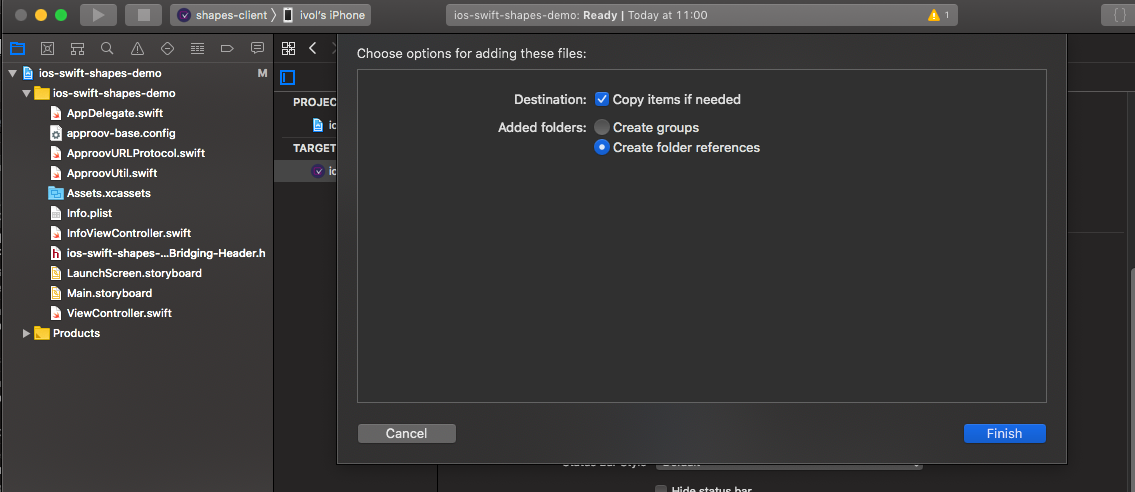

    Xcode: Add Approov SDK

  7. The Approov.xcframework entry should now be present in the Embedded Binaries and Linked Frameworks and Libraries sections, indicating that this will be included and linked with your app.

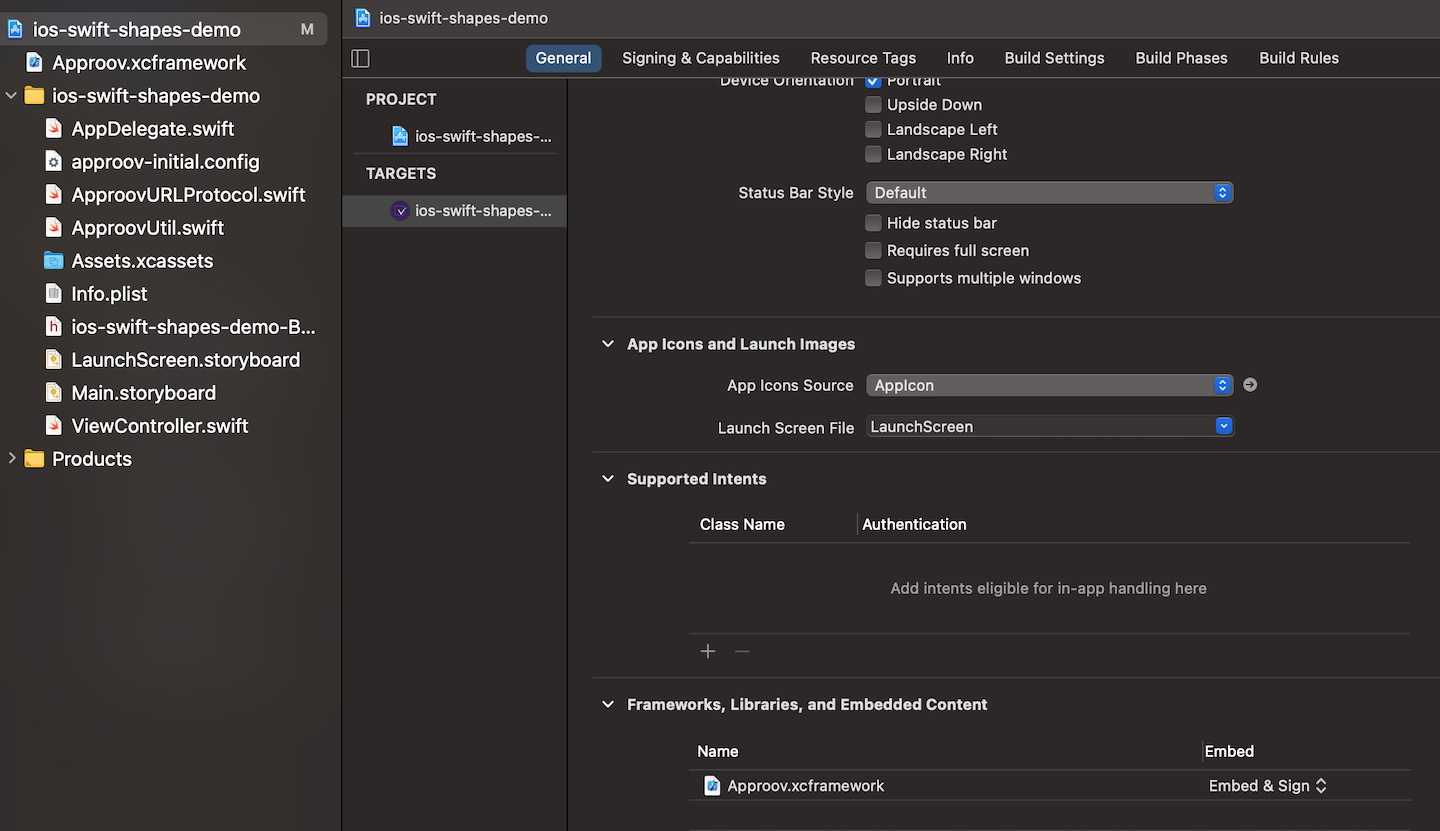

    Xcode: Verify Approov SDK

To access the Approov framework in source code, the public header must be imported. This can be achieved by adding the following to the top of your source or header files:

import Approov

Getting the iOS SDK as a Framework​

It is also possible to obtain the SDK in the classic .framework format as follows:

approov sdk -getLibrary Approov.framework

This writes the SDK into the directory Approov.framework (or any path that is specified). Ensure that this is empty before you perform this operation. Note that the raw iOS package is quite large (of the order of 10MB) so it may take some seconds to download depending upon your connection speed. Download progress is shown.

By default the SDK provided is only suitable for running on physical devices. You can use the -simulator option to obtain a different SDK that only includes simulator architectures.

Note that it is also possible to obtain an SDK in the legacy .zip format by using this extension. This provides the SDK in a zipped file of Approov.framework.
